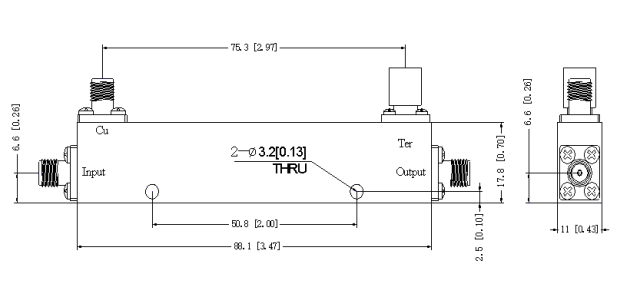

1000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-1/18-10S
CONTACT US
  • 1000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：1000～18000 MHz

Insertion Loss≤1.5dB

VSWR Primary：Type. 1.3 / Max. 1.5

VSWR Secondary ：Type. 1.3 / Max. 1.5

Directivity：Min. 12 dB

Frequency Sensitivity ：±1.0dB

Nominal Coupling：10±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：50W

Operation Temperature：-40℃ ~ +70℃

Surface Finishing：Sandblasting natural color conductive oxide
