Home > All Collections > Others > Power Splitter > 1000～4000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000～4000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000～4000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

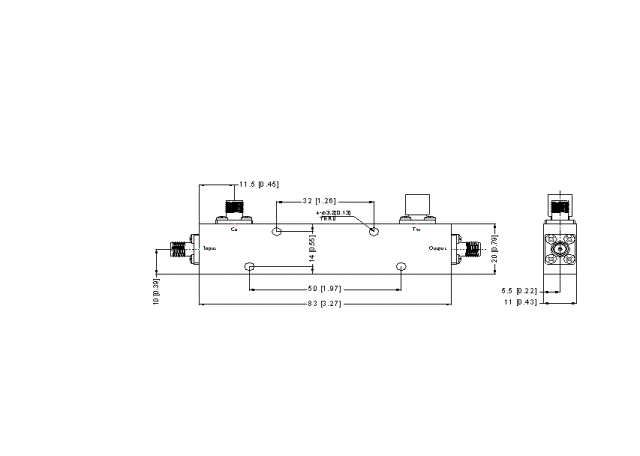

1000～4000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-1/4-20S
CONTACT US
  • 1000～4000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range：1000～4000 MHz

Insertion Loss≤0.5 dB

VSWR Primary：Typ.1.18 / Max.1.25

VSWR Secondary：Typ.1.18 / Max.1.25

Directivity：Min. 15 dB

Frequency Sensitivity：Type. ±0.9dB / Max. ±1.0dB

Nominal Coupling：20 ±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing ：Sandblasting natural color conductive oxide
