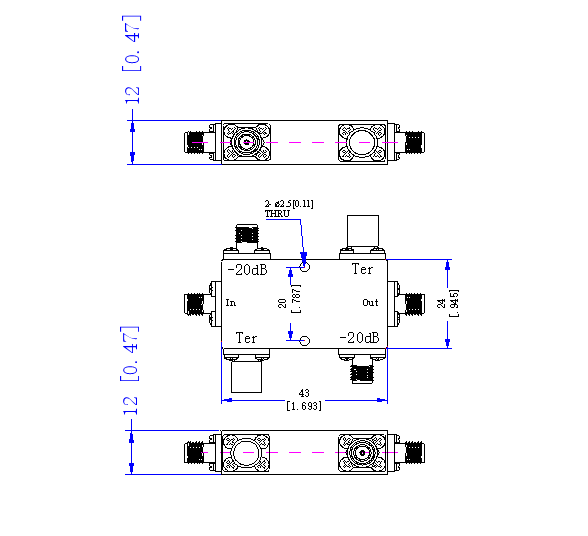

10000～14000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.DMDC-10/14-20S
CONTACT US
  • 10000～14000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：10000～14000 MHz

Insertion Loss≤1.5 dB （0.5dB）

VSWR Primary：Max. 1.40

VSWR Secondary：Max. 1.40

Directivity：Min. 12dB

Nominal Coupling：20±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：30W

Operation Temperature：-40℃ ~ +70℃

Surface Finishing：Sandblasting natural color conductive oxide
