Home > All Collections > Others > Power Splitter > 13700～14500 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 13700～14500 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 13700～14500 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

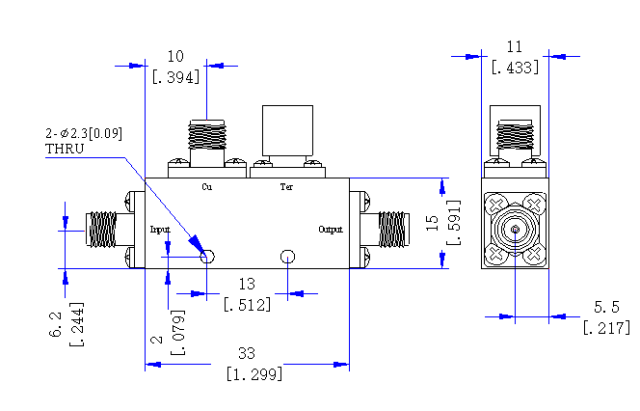

13700～14500 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-13.7/14.5-6S
CONTACT US
  • 13700～14500 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：13700～14500 MHz

Insertion Loss≤1.2 dB

VSWR Primary：Typ.1.18 / Max.1.4

VSWR Secondary：Typ.1.18 / Max.1.4

Directivity：Min. 12 dB

Frequency Sensitivity：Type. ±0.9dB / Max. ±1.0dB

Nominal Coupling：6±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
