Home > All Collections > Others > Power Splitter > 18000～22000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 18000～22000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 18000～22000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

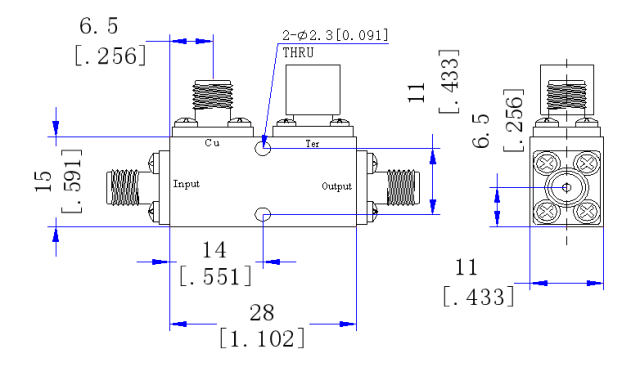

18000～22000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-18/22-20S
CONTACT US
  • 18000～22000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：18000～22000 MHz

Insertion Loss≤1.1 dB

VSWR Primary：Typ.1.4 / Max.1.6

VSWR Secondary：Typ.1.4 / Max.1.6

Directivity：Min. 12 dB

Frequency Sensitivity：Max. ±1.0dB

Nominal Coupling：10 ±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
