Specifications
Frequency Range ：200～500 MHz
Insertion Loss≤1.2 dB（Excluding theoretical loss：7.8 dB）
Input Port VSWR≤ 1. 35: 1
Output Port VSWR≤ 1. 25: 1
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:± 0.6dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:10W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

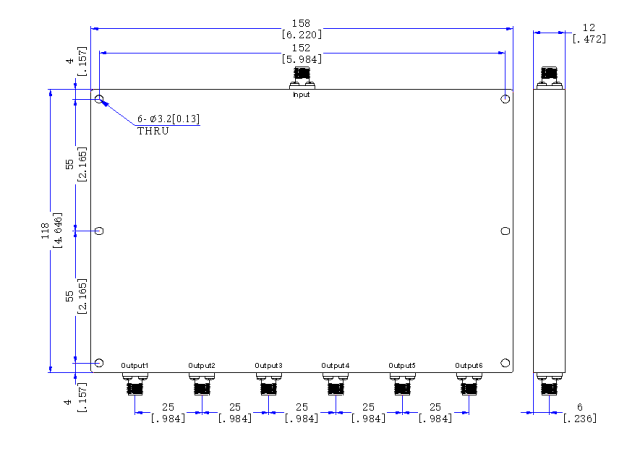

Outline Dimensions:118*158*12（mm）
