Home > All Collections > Others > Power Splitter > 2000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

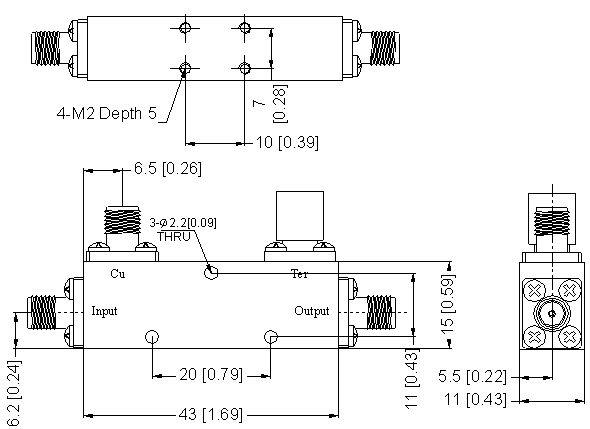

2000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-2/18-10S
CONTACT US
  • 2000～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：2000～18000 MHz

Insertion Loss≤1.0dB

VSWR Primary< 1.5:1

VSWR Secondary < 1.5:1

Directivity：Min. 12 dB

Frequency Sensitivity：Type. ±0.9dB / Max. ±1.0dB

Nominal Coupling：10±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Sandblasting natural color conductive oxide
