Specifications
Frequency Range :400～3000 MHz
Insertion Loss≤1.2dB（Excluding theoretical loss:7.8dB）
Input Port VSWR:Typ.1.20 / Max.1.40
Output Port VSWR:Typ.1.20 / Max.1.40
Isolation :Typ.22dB / Min.16dB
Amplitude Balance:±0.6dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing :Black paint
DC Current:0.77A（193mA each）port

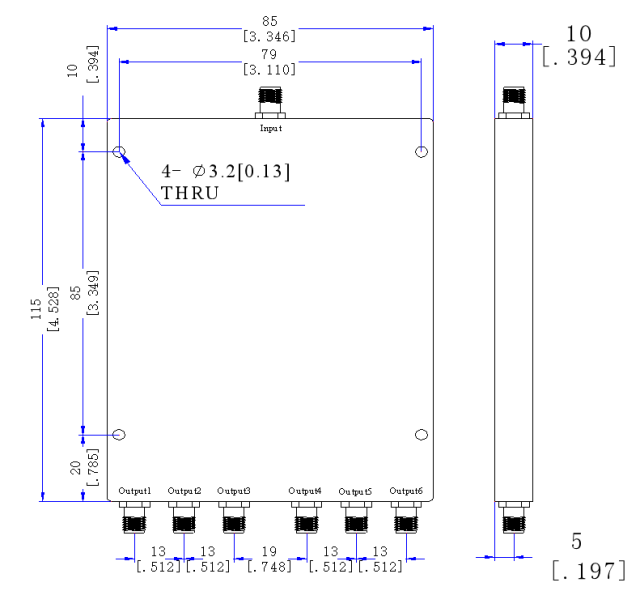

Outline Dimensions:115*85*10（mm）
Weight:220（g）
