Home > All Collections > Others > Power Splitter > 500～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 500～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 500～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

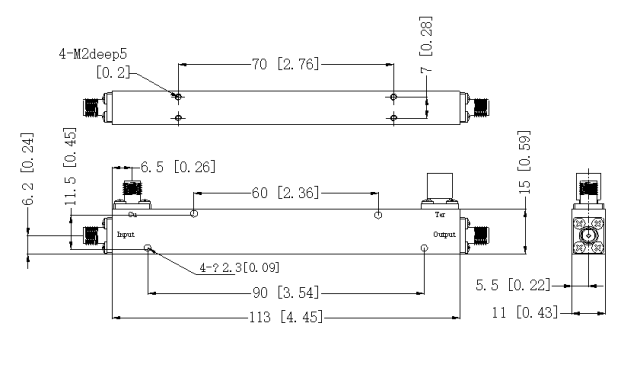

500～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-0.5/18-25S
CONTACT US
  • 500～18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：500～18000 MHz

Insertion Loss≤ 1.6 dB

VSWR Primary：Typ.1.18 / Max.1.60

VSWR Secondary：Typ.1.18 / Max.1.60

Directivity：Min. 10 dB

Frequency Sensitivity：Type. ±0.9dB / Max. ±1.0dB

Nominal Coupling：25 ±1.5dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
