Home > All Collections > Others > Power Splitter > 5800～6700 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 5800～6700 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 5800～6700 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

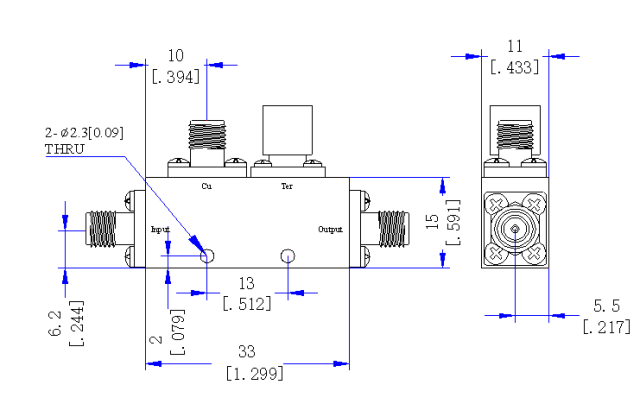

5800～6700 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-5.8/6.7-6S
CONTACT US
  • 5800～6700 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：5800～6700 MHz

Insertion Loss≤1.5 dB

VSWR Primary：Typ.1.18 / Max.1.3

VSWR Secondary：Typ.1.18 / Max.1.3

Directivity：Min. 15 dB

Frequency Sensitivity：Type. ±0.9dB / Max. ±1.0dB

Nominal Coupling：6 ±1.0dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
