Home > All Collections > Others > Power Splitter > DC～3600 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3600 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3600 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

DC～3600 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/3.6-3S
CONTACT US
  • DC～3600 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:DC～3600 MHz

Insertion Loss≤10.5 dB

Input Port VSWR:Typ.1.14 / Max.1.30

Output Port VSWR:Typ.1.14 / Max.1.30

Isolation:Min.9.0dB

Amplitude Balance:±0.4dB

Phase Balance:±4°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

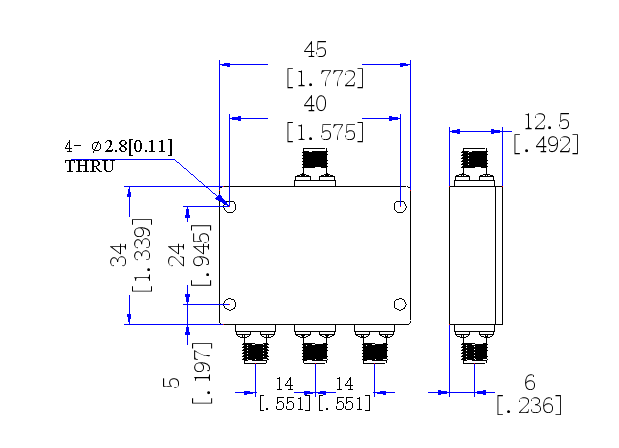

Outline Dimensions:34*45*12.5（mm）

Weight:55（g）
