Home > All Collections > Others > Power Splitter > 2.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter

2.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter

No.MNK-A3285-HS
CONTACT US
  • 2.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Cut Off Frequency：2.0GHz

Pass Band Frequency：2.0～13GHz

Pass Band Insertion Loss≤2.0dB @ 2.0～2.2GHz

≤1.0dB @ 2.2～13GHz

Pass Band VSWR ≤1.5:1

Stop Band Attenuation≥60dB @ DC～1.7GHz

Impedance：50 ohms

Power≤15W

Connectors：SMA-Female

Surface Finish：Guided Oxygen or Black Paint

Temperature Range：-55℃～+85℃

Net weight：0.06 KG

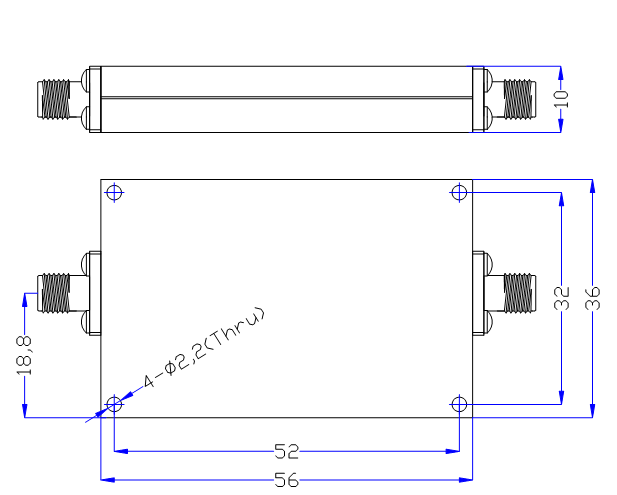

Configuration：As Below (Size Unit: mm)
