Home > All Collections > Others > Power Splitter > 2000~18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000~18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000~18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

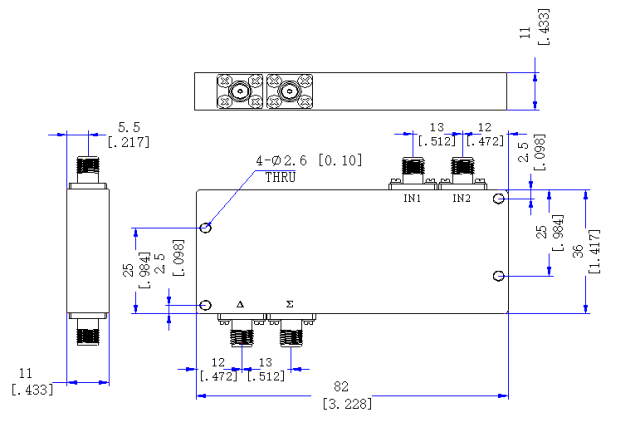

2000~18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.180°MTH-2/18-S
CONTACT US
  • 2000~18000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range:2000～18000 MHz

Insertion Loss≤ 2.8 dB

VSWR:Max.1.8

Isolation :Min. 12dB

Frequency Sensitivity:±1.6dB

Phase Balance:±13°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:30W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

REQUEST MORE DETAILS
