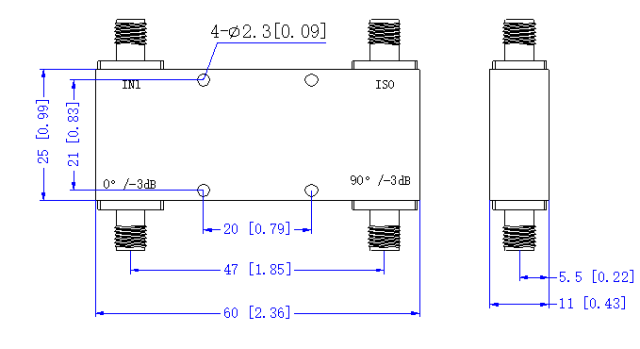

2000~8000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MTH-2/8-S-3
CONTACT US
  • 2000~8000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range：2000～8000 MHz

Insertion Loss≤ 0.6dB

VSWR <1.30:1

Isolation：Min. 25 dB

Amplitude Balance：Max. ±0.5dB

Phase Balance：±5°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Average.50W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
