Home > All Collections > Others > Power Splitter > 20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/2-2N
CONTACT US
  • 20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：DC～2000 MHz

Insertion Loss ≤6.9 dB

Input Port VSWR：Typ.1.11 / Max.1.2

Output Port VSWR：Typ.1.10 / Max.1.2

Isolation：Min.5.6dB

Amplitude Balance：± 0.3dB

Phase Balance：±3°

Impedance：50 Ohms

Input/Output Connectors：N-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Sandblasting natural color conductive oxidation

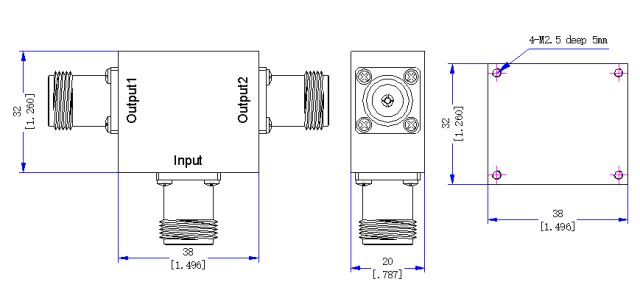

Outline Dimensions ：32*38*20（mm）

Weight：98（g）
