Specifications
Cut Off Frequency：3.0GHz
Pass Band Frequency 3.0～21GHz
Pass Band Insertion Loss≤1.5dB @ 3.0～3.1GHz
≤1.0dB @ 3.1～21GHz
Pass Band VSWR ≤1.5:1
Stop Band Attenuation≥50dB @ DC～2.36GHz
Impedance：50 ohms
Power≤15W
Connectors：SMA-Female
Surface Finish：Guided Oxygen or Black Paint
Temperature Range：-55℃～+85℃
Net weight：0.02 KG

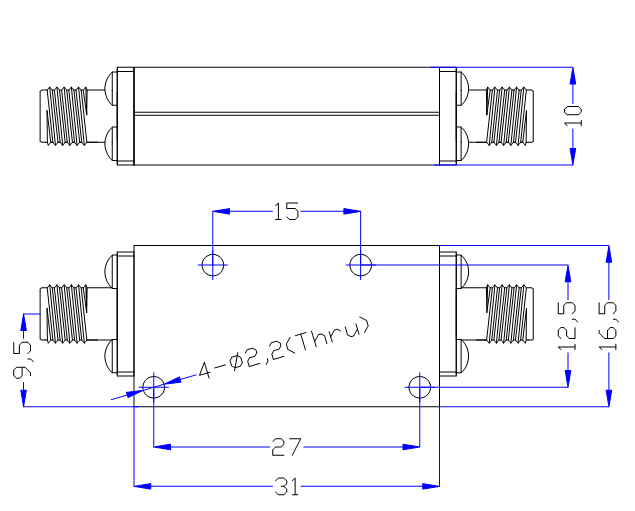

Configuration：As Below (Size Unit: mm)
