Specifications
Center Frequency(F0)：30GHz
Pass Band Frequency：20 ~ 40GHz
Pass Band Insertion Loss≤1.0dB
Pass Band Ripple ≤0.45dB
Pass Band Return Loss≥15dB
Stop Band Rejection≥80dB @ DC ~ 17GHz
≥30dB @ 17 ~ 19GHz≥10dB @ 41 ~ 43.5GHz
Impedance：50 Ohms
Power Handling：5W Max.
Connectors：2.92mm(K)-Female
Surface Finish：Painted Black
Temperature Range：-30℃ ~ +70℃
Material Housing: H62 Copper alloy
Cover: H62 Copper alloy
Tuning screw: H62 Copper alloy Connectors: Stainless Steel
Other screw: Stainless Steel

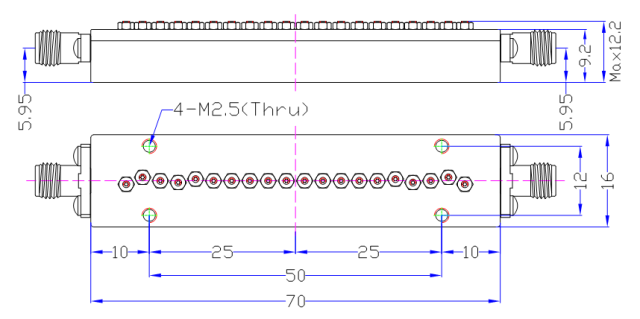

Dimensions：70*16*9.2mm
Net weight：0.07 KG
