Specifications
Frequency Range:5～500 MHz
Insertion Loss ≤ 1.5dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.30
Output Port VSWR :Typ.1.18 / Max.1.30
Isolation :Typ.26dB / Min.18dB
Amplitude Balance :± 0.4dB
Phase Balance :±4°
.Impedance:50 Ohms
Input/Output Connectors :BNC-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

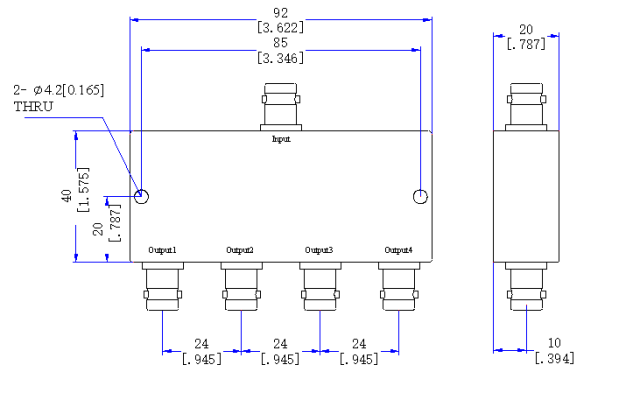

Outline Dimensions:40*92*20（mm）
Weight:300（g）
