Specifications:

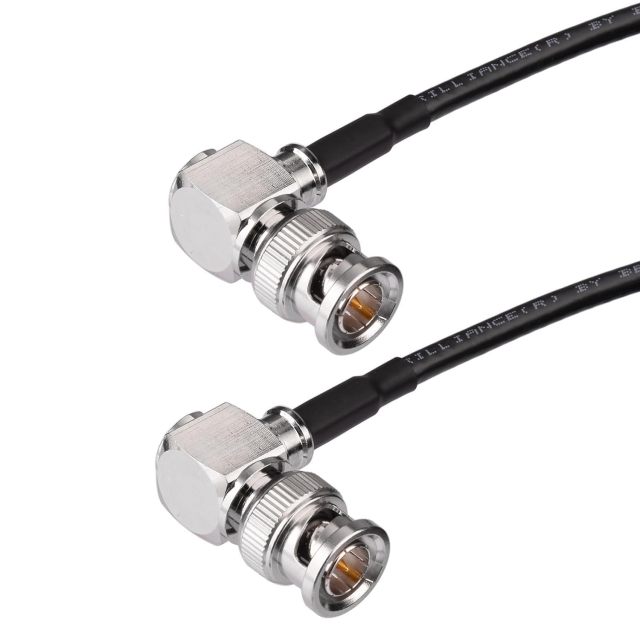

75 Ohm connector A: bnc male plug right angle | Gold Plated Centre Pin
75 Ohm connector B: bnc male plug right angle | Gold Plated Centre Pin

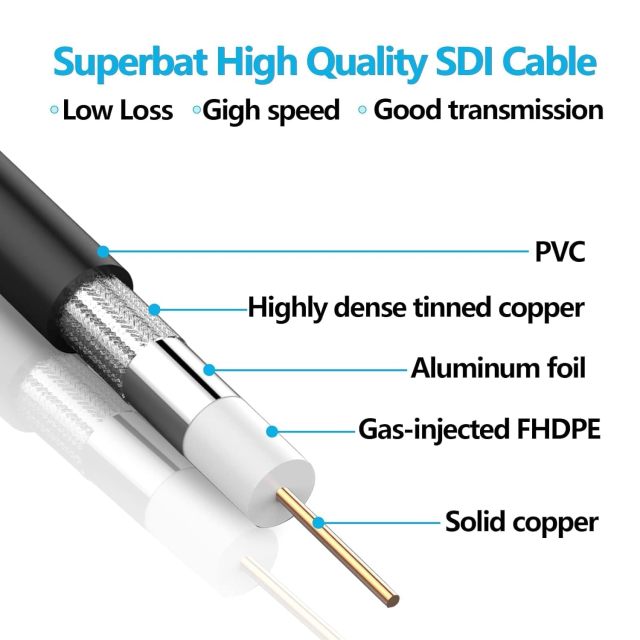

Belden 1855A HD SDI Cable - Sub-Miniature Precision Broadcast Video Coax Cable 23 AWG solid .023" bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), PVC jacket
Overall Diameter: 0.159" ; Cables meet SMPTE 259M, 292M,424M Standards
Tinned copper braid, and Duofoil shields, for excellent shielding ; Hand assembly and testing in-house
NOTE: 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
Applications Include:
For High-Density HD Video Routing, HD-Serial Digital Video, Wireless HDMI Extender, Receiver Transmitter
Compatible with Blackmagic DeckLink Quad capture cards, Studio Monitor ,SDI to HDMI Converter, Cameras Monitor Vedio Recorder, BMCC Video HDMI Extender etc.
Best for Fixed HD Applications, HDTV Upgrades, Broadband Facilities, SMPTE 259M, 292M, 424M It fits just fine between the video switcher and the pc with capturecard to record the video from the switcher.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| 3G/6G/12G SDI BNC Cable | 3G SDI HD-SDI Cable | 3G/HD BNC Cable Thin SDI Cable 1pcs | Thin 3G/6G/12G SDI BNC Cable 75 Ohm SDI Video Cable Right Angle | BNC 3G/HD SDI Cable Coil Cable right angle | DIN 1.0/2.3 to BNC Male Cable | |
| | | | | | | |
| Customer Reviews | 408 | 42 | 277 | 42 | 83 | 21 |
| Cable type | Belden 1694A | Belden 1855A | RG-179 | Belden 1855A | 3C-2V A/V Cable | Belden 1855A |
| Support | SD-SDI/HD-SDI/3G-SDI/6G-SDI | SD-SDI/HD-SDI/3G-SDI/6G-SDI | Supports HD-SDI/3G-SDI/4K/8K，SDI Video | SD-SDI/HD-SDI/3G-SDI/6G-SDI | SD-SDI/HD-SDI/3G-SDI | for Blackmagic BMCC/BMPCC Video Assist 4K Transmissions HyperDeck Kameras |
 |  |  |  |  | |
|---|---|---|---|---|---|
| 12g 4k hd sdi cable mini rg59 cable | BNC Splitter Cable 75Ohm SDI Coax Splitter | Low Loss RG179 RF Coaxial Cable 75ohm | 3G/HD SDI Cable BNC Cable right angle | 3G/6G SDI cable bnc to bnc cable | |
| | | | | | |
| Customer Reviews | 7 | 6 | 9 | 277 | 12 |
| Type | sdi cable | sdi splitter | bare wire | sdi cable | sdi cable |
| Cable type | 12G Belden 4855R | RG179 cable | RG179 cable | RG179 cable | Belden 1694A Black |
