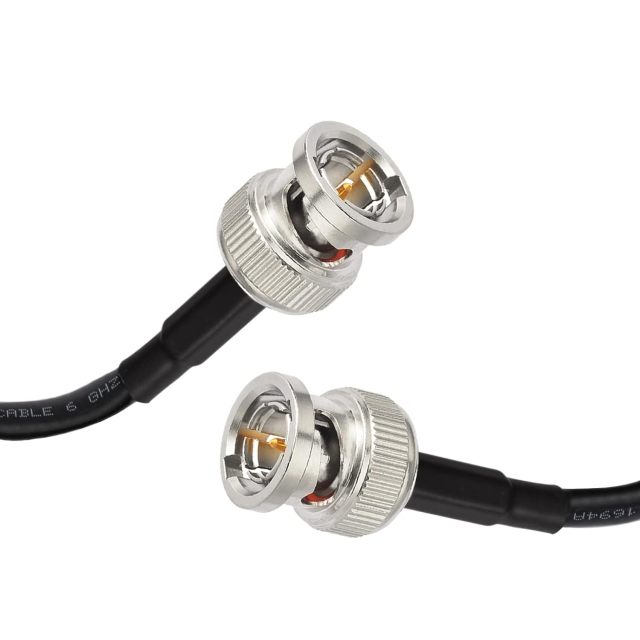

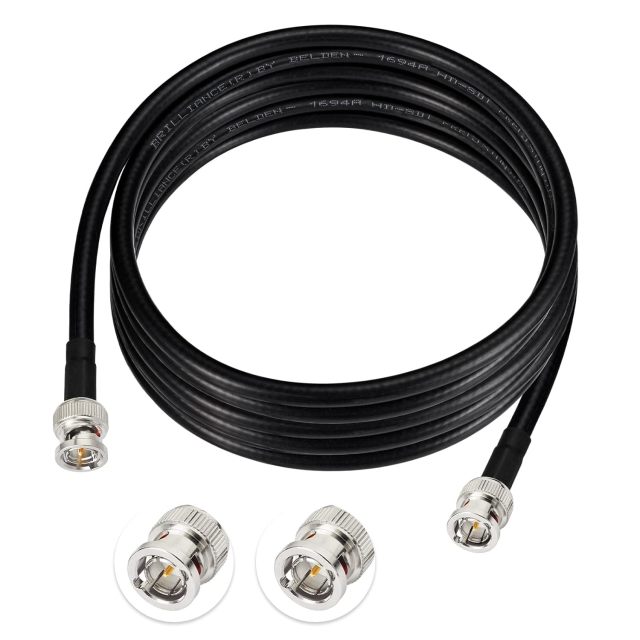

Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.

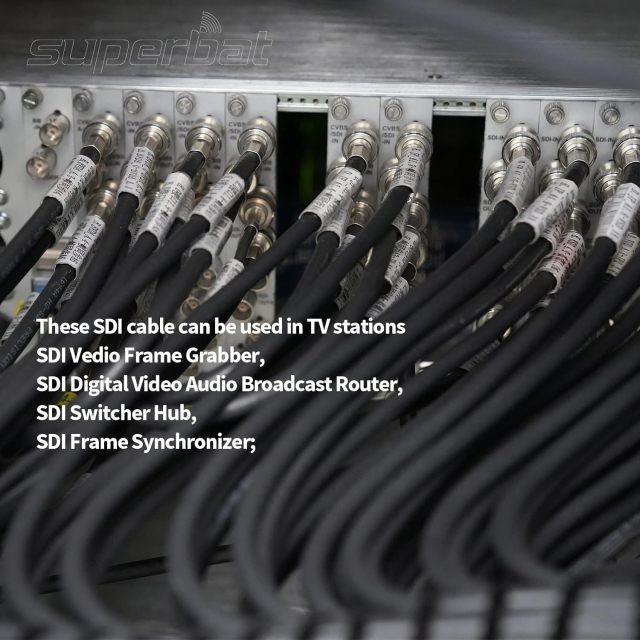

This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.
Center conductor: 0.40" dia. bare copper
Dielectric: 0.180" dia. foamed PE
Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper -give maximum protection from EMI and RFI, excellent noise rejection
PVC outer jacket - durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.

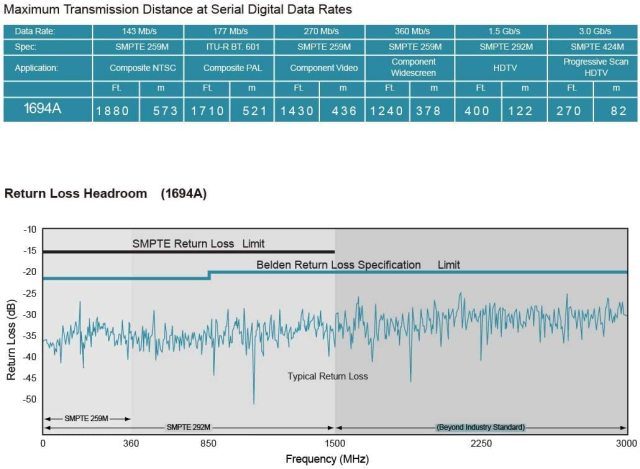

Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
This sdi cable Impedance: 75 ohm for audio and video, so :

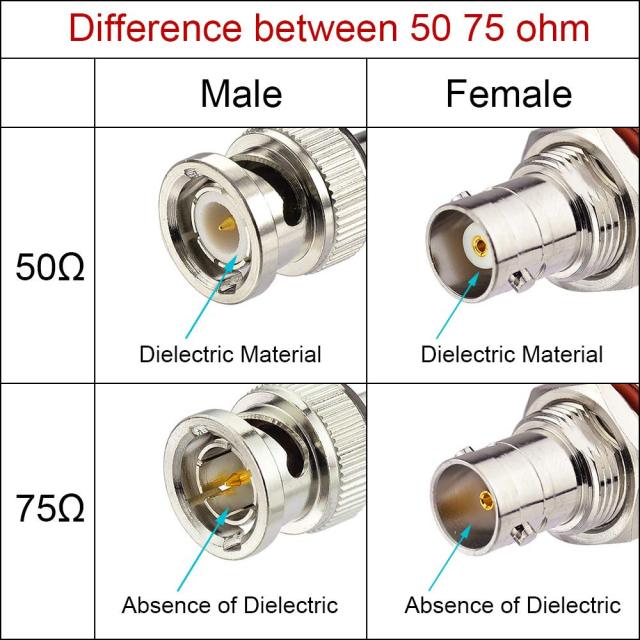

50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm BNC connectors are used with 75 Ohm cables.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| 3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable | 3G/6G/12G SDI Cable BNC Cable BNC Extension Coaxial Cable | 3G SDI HD-SDI Cable BNC Cable Thin Short bnc Male to male Cable | DIN to SDI BNC Cable, DIN 1.0/2.3 to BNC Male Cable | BNC Cable 3G/HD SDI Cable Coil Cable 75ohm BNC to BNC Extension Cable | 12G SDI Cable 4K short BNC Cable | |
| | | | | | | |
| Customer Reviews | 277 | 408 | 42 | 14 | 83 | 7 |
| Cable type | RG179 coax cable | Belden 1694A | Belden 1855A | Belden 1855A | 3C-2V A/V Cable | Belden 4855A |
| Support | Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable | Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable | SD-SDI/HD-SDI /3G-SDI/6G-SDI Vedio Camera Monitor | for Blackmagic BMCC/BMPCC Video Assist 4K Transmissions HyperDeck Kameras | SD-SDI/HD-SDI /3G-SDI Cable | for SDI Vedio Recorder Camera Monitor Audio Gateway Hub Broadcast Router Frame Sync Converter |
 |  |  |  | |
|---|---|---|---|---|
| 3G 6G SDI Cable 75 ohm BNC Male to BNC Male Cable | 12G SDI Cable 4K BNC Male to Male Cable 75 Ohm + SDI Cable Reel | 3G/6G HD SDI Cable BNC Male to BNC Male Cable | 3G HD-SDI Cable BNC Male to BNC Female Cable | |
| | | | | |
| Customer Reviews | 12 | — | 2 | 16 |
| Cable type | Belden 1694A Black | Belden 4694R | Belden 1694A Colourful | RG179 cable |
| Application | for SDI Vedio Camera Monitor, SDI Capture Card, SDI Vedio Frame Grabber, SDI Switcher Hub, SDI Frame Synchronizer etc. | for SDI Vedio Camera Monitor, SDI Capture Card, SDI Frame Grabber, Switcher Hub, SDI Frame Synchronizer, Surveillance Camera Cables etc. | for VCR, camera, CCTV monitor, sdi converter, video splitter, oscilloscopes, surveillance camera cables etc. | for Cameras, SDI Video Cable Wireless Microphone System Receiver Extender etc. |
 |  |  |  |  | |
|---|---|---|---|---|---|
| 3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 2pcs | BNC Cable BNC Male to Male Connector Coaxial Cable 2pcs | BNC SDI Coax Splitter 75Ohm BNC Male to Dual Female Cable | BNC SDI Adapter BNC Female to Female Barrel Connector | BNC Female to BNC Female Barrel Coaxial Connector Adapter | |
| | | | | | |
| Customer Reviews | 260 | 183 | 6 | 22 | 95 |
| Impedance | 75 Ohm | 50 Ohm | 75 Ohm | 75 Ohm | 50 Ohm |
| Type | Coax cable | Coax cable | Coax splitter | bnc coupler | bnc coupler |
