IPEX (IPX) MHF Connector is equivalent to the Hirose U.FL connector. IPEX MHF is the generation one of the IPEX micro RF coaxial connector. MHF connector is designed to have a 2.5mm mating height and can operate 0~6GHz frequency.
Simple connection and disconnection Applications include Mobile phones, WLAN, Mini PCI, Bluetooth, PDA, GPS, electronic measuring instrument, etc.
PRODUCT FEATURES:

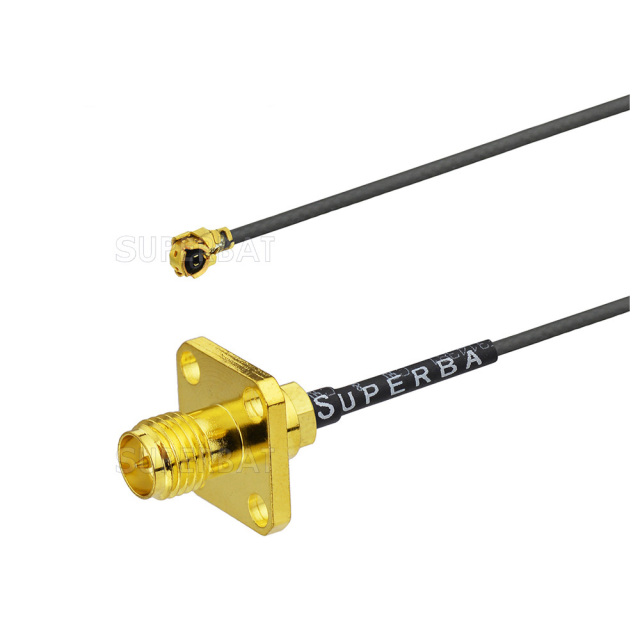

Product name: IPX /U.fl Jack female right angle to RP SMA female 4 holes Flange mount 1.13mm cable
Connector A: IPX/u.fl
Connector B: RP SMA female with flange straight
Cable length: It can be optional
Cable type: Cable OD 1.13mm,
Impedance: 50 Ω;
Operating temperature : -40°C ~ +85°C.
Custom Service: if you require the different length
with the same both ends of connectors ,or other type of RF cable
assemblies ,welcome to bulid the cable through our RF custom cable
wizard : https://www.rfsupplier.com/customcable.html
